Flexible Access Smart Energy
Smart Battery Swap Cabinets
Available in 6-slot, 8-slot, and 12-slot models, our battery swap cabinets support QR code, Bluetooth, and card-based swapping. They can also integrate with solar power systems, intelligently switching between solar energy and grid electricity for reliable and efficient operation.

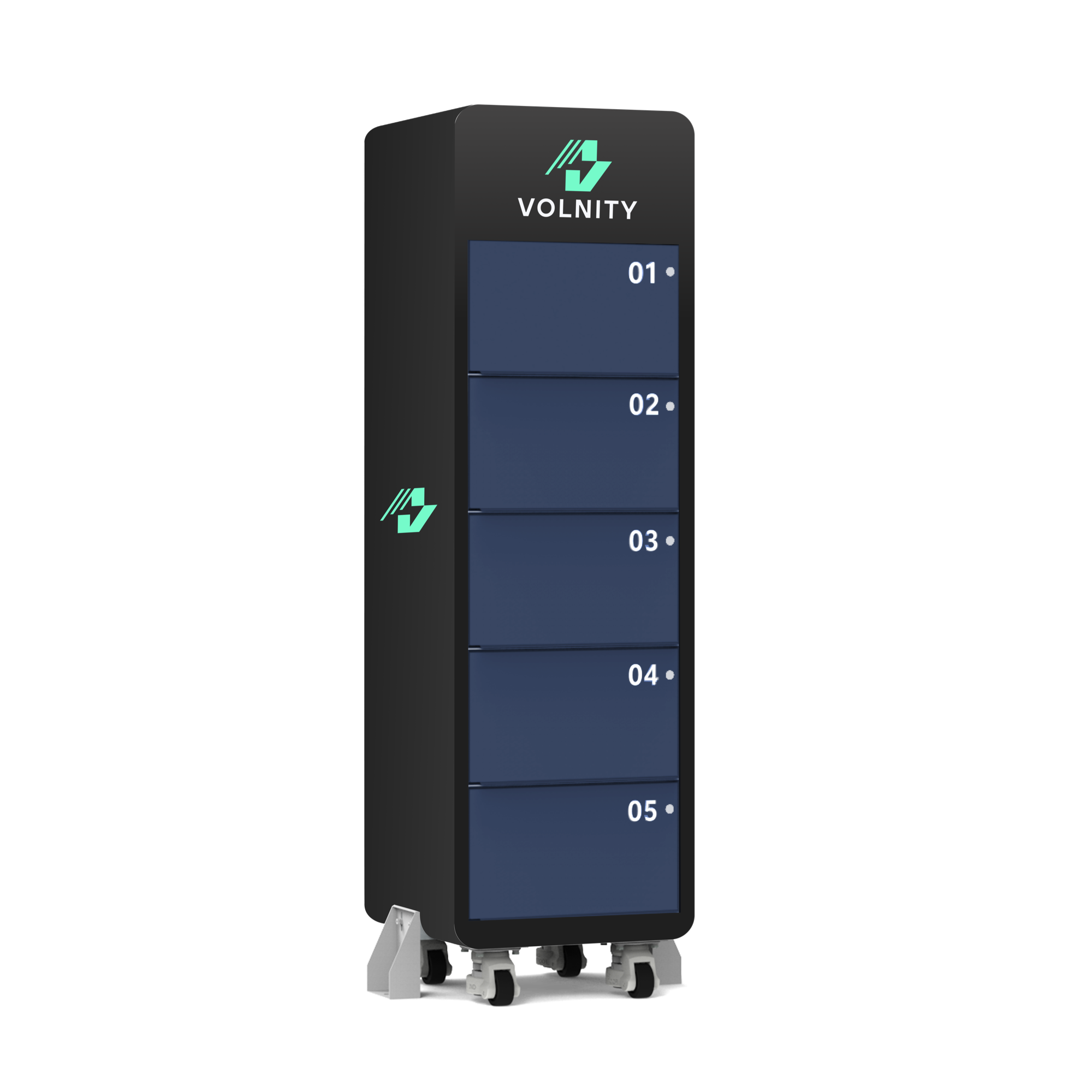

Volnity Flex 6 Slot Cabinet
A compact and cost-efficient battery swap cabinet designed for early-stage network deployment. It can support approximately 12–15 riders, helping operators build coverage quickly with lower initial investment. Two Flex 6 cabinets can also be connected and managed as a 12-slot station, providing greater flexibility as demand grows.
- Number of Slots: 5
- Supported Swap Mode: Bluetooth Offline Battery Swapping
- Charging Power: 220V AC Input / 4000W Rated Power
- Charger Configuration: Five 800W, 15A Chargers
- Supported Battery Voltage: 48V, 60V, and 72V Batteries
- Fire Protection: Five Aerosol Fire Extinguishers
- Single-Slot Dimensions (D × W × H): 420 × 255 × 220 mm
- Waterproof Rating: IP55 with Rain Canopy

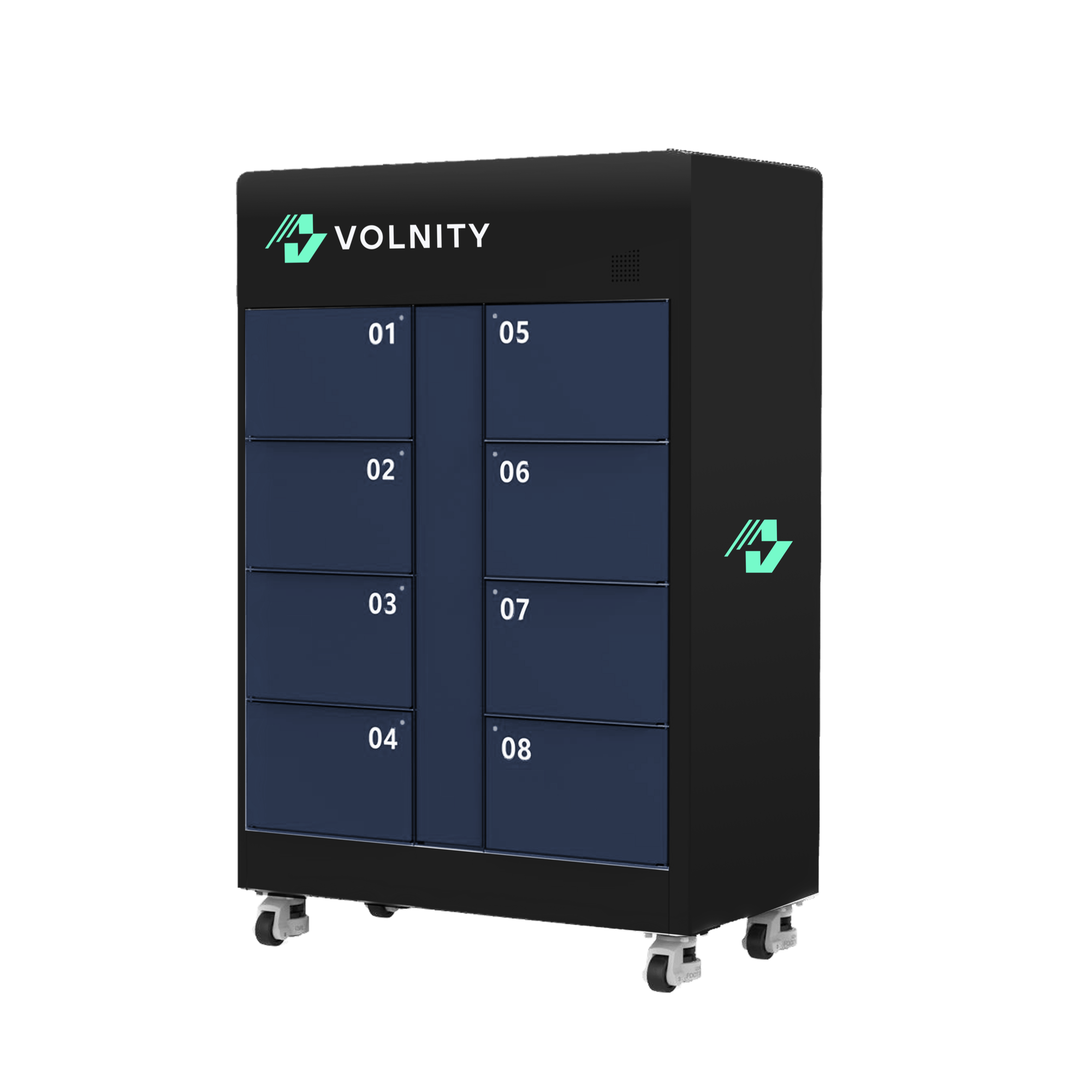

Volnity Urban 8 Slot Cabinet
A balanced battery swap cabinet designed for medium-traffic locations. Supporting approximately 15–20 riders, Urban 8 offers an ideal combination of capacity, footprint, and operating efficiency for communities, delivery hubs, retail locations, and urban service points.
- Number of Slots: 8
- Supported Swap Mode: Bluetooth Offline Battery Swapping
- Charging Power: 220V AC Input / 6400W Rated Power
- Charger Configuration: Eight 800W, 15A Chargers
- Supported Battery Voltage: 48V, 60V, and 72V Batteries
- Fire Protection: Eight Aerosol Fire Extinguishers
- Single-Slot Dimensions (D × W × H): 420 × 255 × 220 mm
- Waterproof Rating: IP55 with Rain Canopy

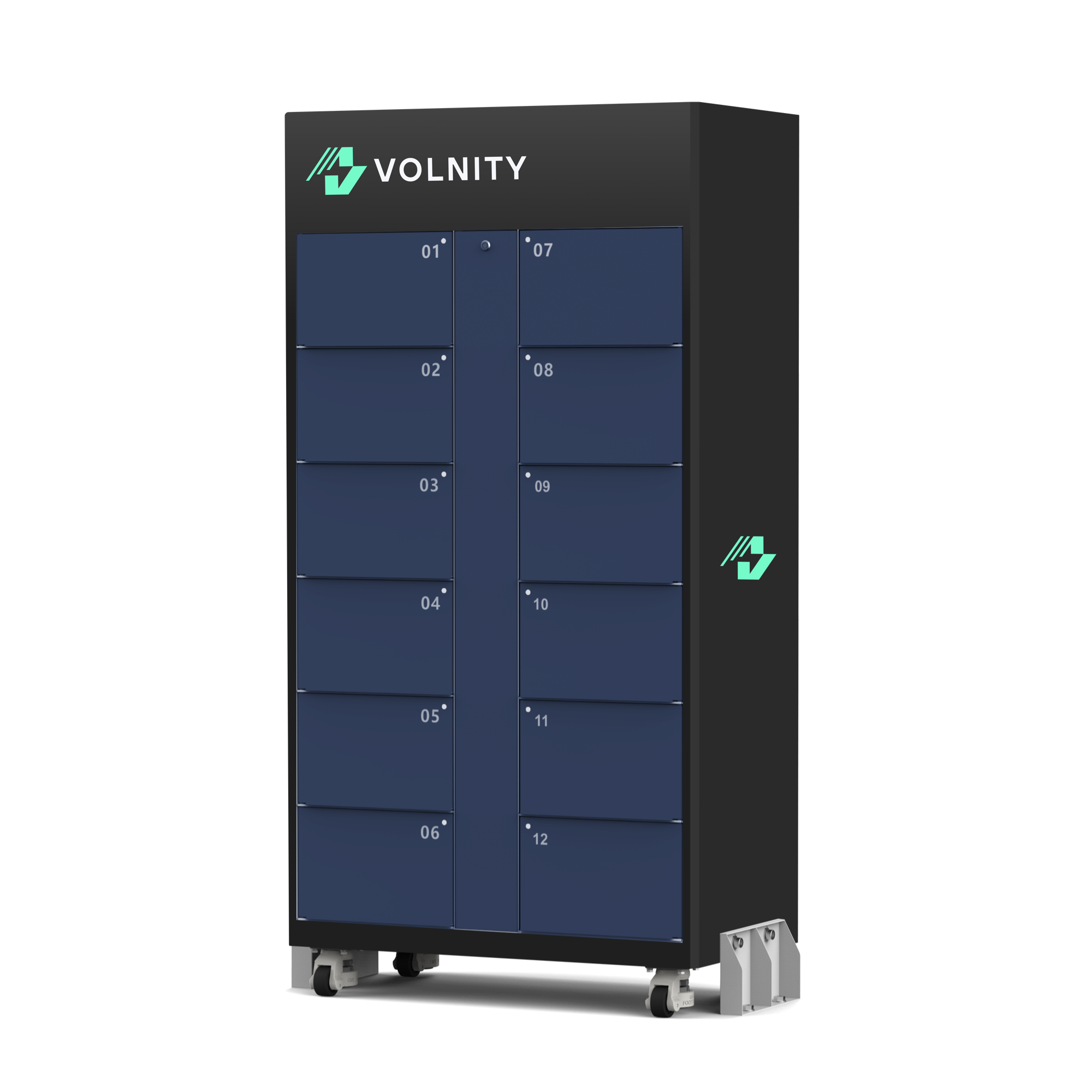

Volnity Max 12 Slot Cabinet
A high-capacity battery swap cabinet built for busy stations and high-demand operating areas. Supporting approximately 25–30 riders, Max 12 provides greater battery availability and faster turnover, making it ideal for transport hubs, delivery centers, and core network locations.
- Number of Slots: 12
- Supported Swap Mode: Bluetooth Offline Battery Swapping
- Charging Power: 220V AC Input / 9000W Rated Power
- Charger Configuration: Twelve 800W, 15A Chargers
- Supported Battery Voltage:48V, 60V, and 72V Batteries
- Fire Protection: Twelve Aerosol Fire Extinguishers
- Single-Slot Dimensions (D × W × H): 420 × 255 × 220 mm
- Waterproof Rating: IP55 with Rain Canopy
03
Reliable Hardware for Real-World Operations
Frequently Ask Questions
Our hardware can be configured for different electric motorcycles, three-wheelers,
and light electric vehicles. Battery voltage, communication protocols, connectors, vehicle controllers,
and BMS integration are verified before deployment to ensure system compatibility.
We provide lithium iron phosphate and semi-solid-state battery solutions, including single-battery and dual-battery systems.
Swapping stations are available in 5-slot, 6-slot, 8-slot, and 12-slot configurations
for different fleet sizes and operating environments.
The system combines battery-level BMS monitoring, charging control, temperature monitoring, abnormal-condition alerts,
and remote device management. Hardware configurations are selected according to the local climate, electricity conditions,
installation environment, and operating requirements.
We provide installation guidance, technical training, operating manuals,
remote diagnostics, spare-parts planning, and maintenance support.
For larger projects, we can also assist with local service-center
development and on-site operational incubation.
